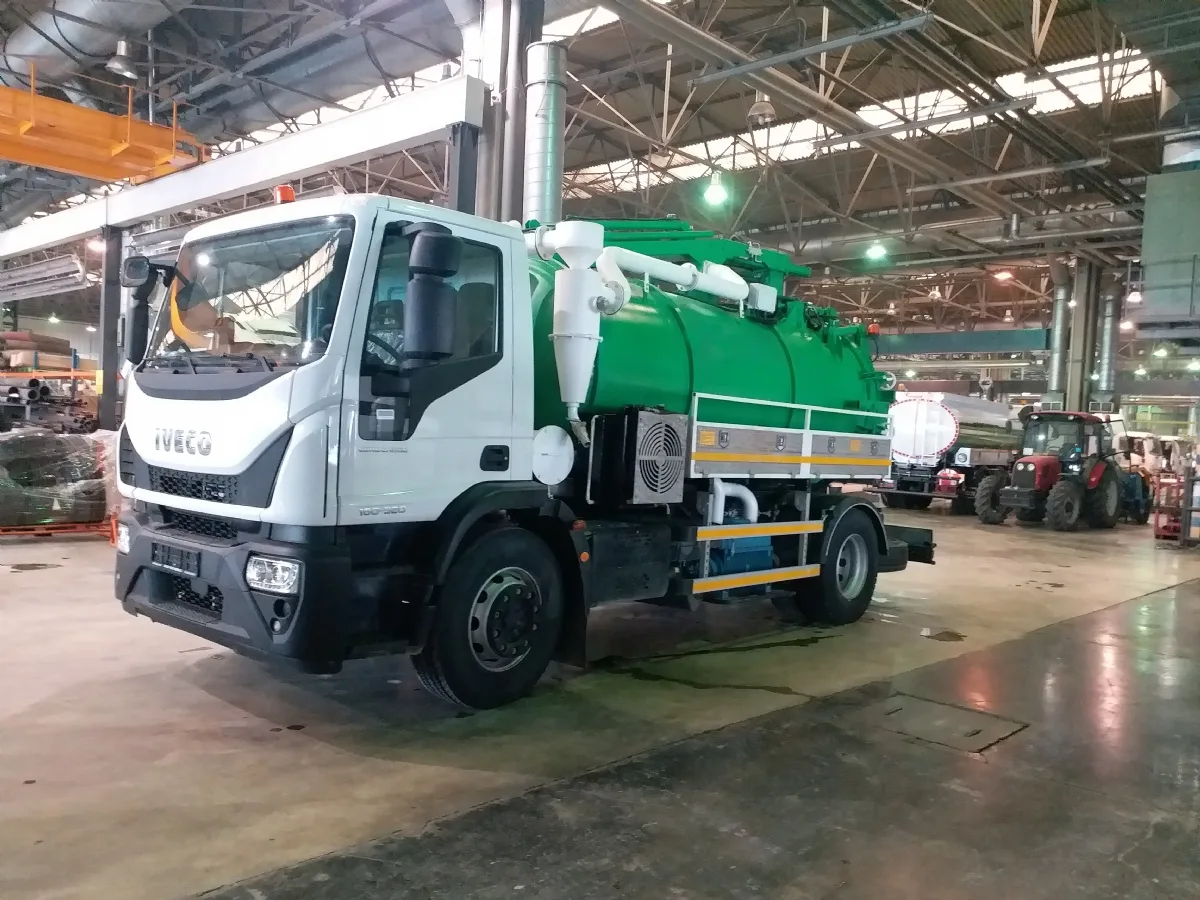

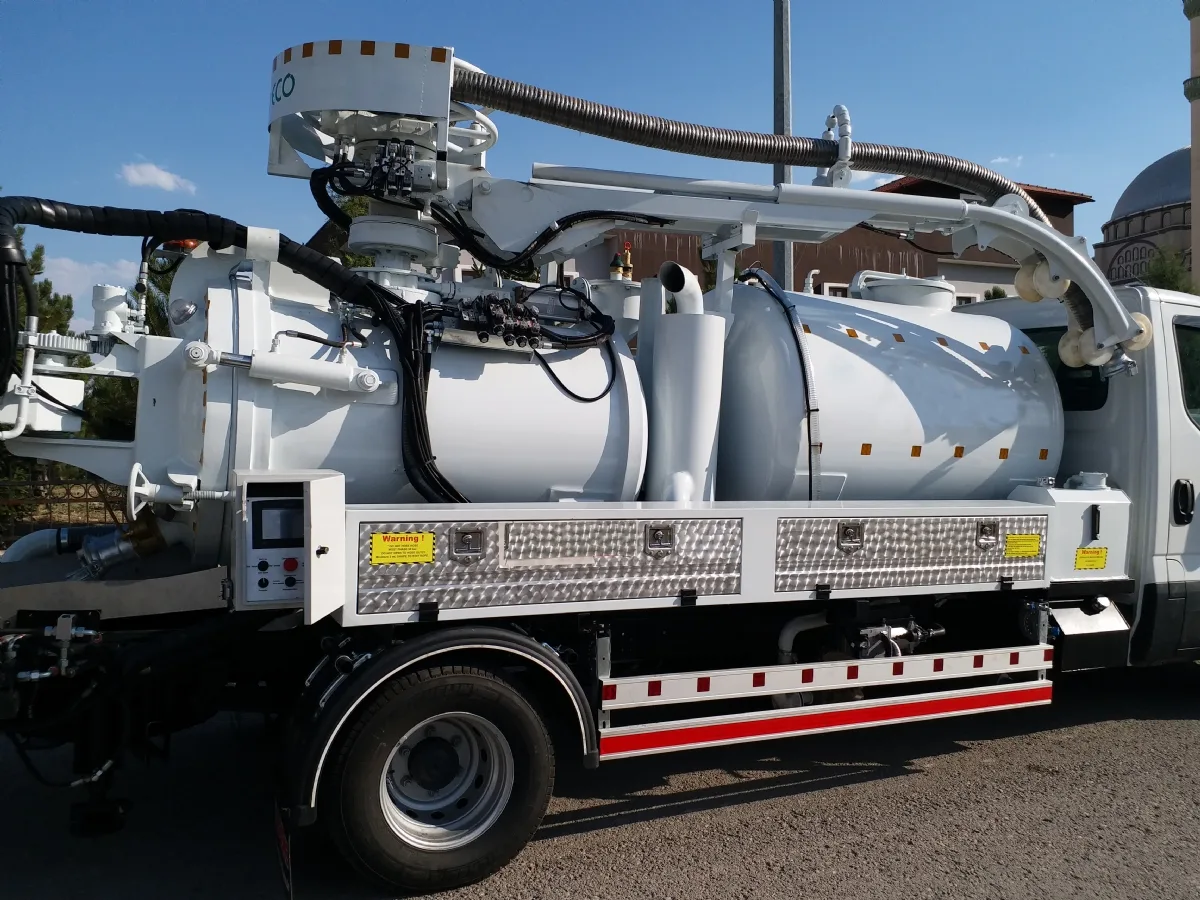

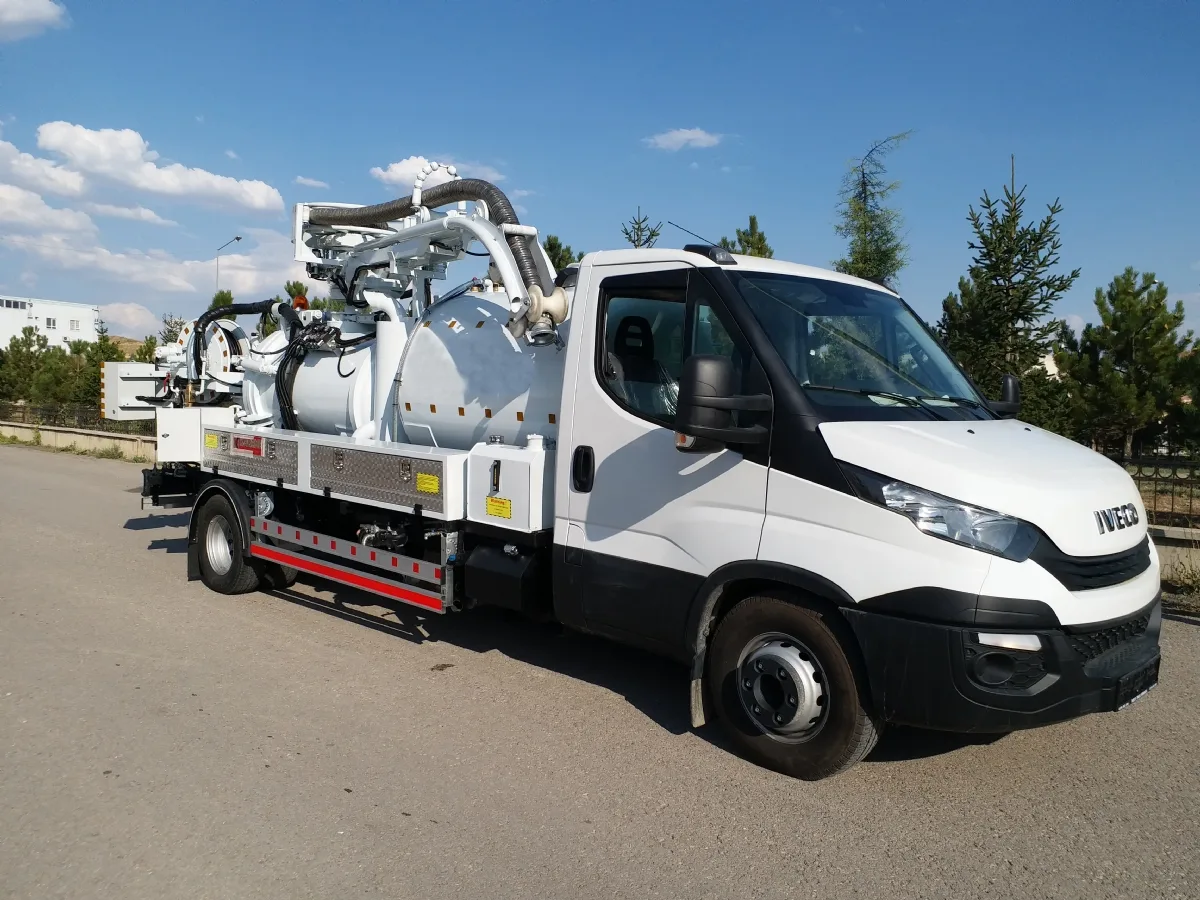

Combined Sewer Cleaning and Opening Vehicle
The combined sewer cleaning vehicle performs the task of clearing blockages in the sewer using high-pressure water while simultaneously vacuuming the debris dragged to the manhole entrance (sewer grate) into the tank through its suction system. The vacuum and high-pressure sewer cleaning functions of the combined sewer cleaning vehicle can be operated both together and independently.
Download catalogue (PDF) ↓The combined sewer cleaning vehicle performs the task of clearing blockages in the sewer using high-pressure water while simultaneously vacuuming the debris dragged to the manhole entrance (sewer grate) into the tank through its suction system. The vacuum and high-pressure sewer cleaning functions of the combined sewer cleaning vehicle can be operated both together and independently.
Technical Specifications
- Tank Volume
- 3.000 - 20.000 litre
- Material
- Karbon çeliği – AISI 303,AISI 304 / 3.000 - 20.000 liters - AISI 316 L / Carbon Steel - AISI 303,AISI 304 / 3.000 - 20.000 liters - AISI 316 L
- Vacuum pump
- 500 m3/h – 9500 m3/h
- Water pump
- 600 Bar
- Back cover
- Hidrolik
- Back cover lock
- Manuel / Hidrolik ( kelepçe - kamalı sistem
- Filling and Unloading
- 6” manuel -pnömatik olarak 4”
- Top suction system
- Klasik bom – cd bom – kaset bom ( isteğe bağlı )
- Grooving drum
- 3/4” 80 -100-120 metre , 1” 80-100-120 metre, ( sabit tip ve 180 derece döner ( isteğe bağlı )
Values vary by model and chassis; request a quote for exact dimensions.
